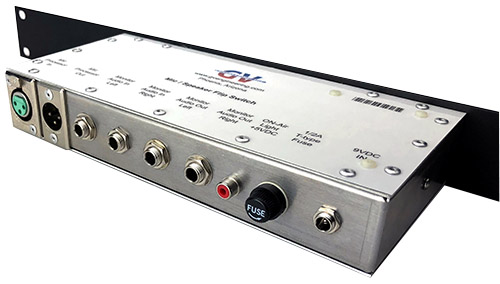

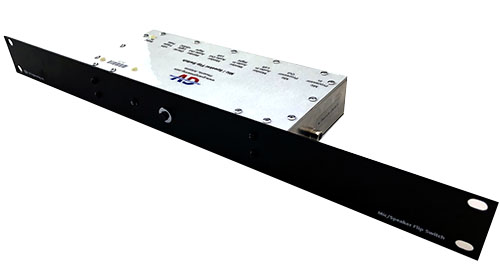

Mic / speaker flip switch

Shop Now
  • Mic input; balanced XLR
  • Mic output; balanced XLR
  • Line level input; balanced TRS or unbalanced TS 1/4″ connector
  • Line level output; balanced TRS or unbalanced TS 1/4″ connector
  • ON-Air Light +5VDC 100 mA maximum output
  • Power Supply Adapter; 9 VDC 500 mA
  • 2.1 mm DC input connector
  • Ambient operating temperature 0 to +50 C
  • Power Consumption; 40 mA typical
  • Frequency Response DC to 40 Khz flat
  • Size – 1 rack unit – 19″W x 4.5″D x 1.75″H
  • Weight 1lb 8 oz (680 grams)
  • 2 year warranty
